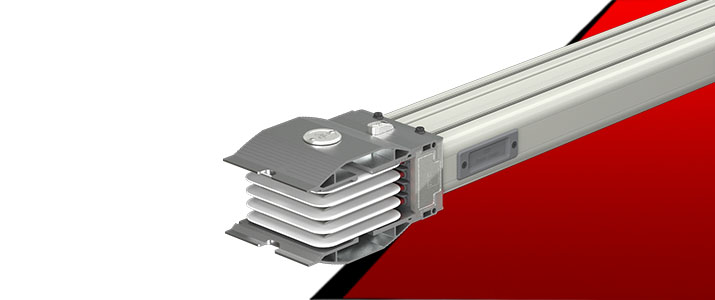

E-Line CCR Busway
600A to 6300A UL IEC
Transmission of high voltage (in transformer-board connections, column lines, factory internal
energy distribution) used to be realized by parallel connection of multiple cables with very thick
profiles.
Aluminium housing over the “DUROCOMP” composite material that is made by specially selected pure silicium minerals and epoxy resin and has high temperature and mechanical operation features protects E-LINE CCR busway from external elements.
Aluminium housing over the “DUROCOMP” composite material that is made by specially selected pure silicium minerals and epoxy resin and has high temperature and mechanical operation features protects E-LINE CCR busway from external elements.
General Features
Aluminium housing over composite material that is made
by specially selected pure silicium minerals and epoxy
resin
Full-length tin-plated aluminium and copper conductor
Epoxy coated on conductors
Conductor Configuration
Aluminium and Copper Conductor:
Conductor Material and Rated Currents
Aluminium Conductor:
Copper Conductor:
Advantages of CCR Busway
Using Cast Resin bars in outdoor environments, gallery transitions, chemical plants, harbour applications, tunnels instead of cables that are applied as mandatory brings together many advantages. Thanks to the high heat transfer additives used in the Busway system, the heat generated in conductors is easily transferred to the environment through the housing.- Complies with 61439-6 standards
- Outdoor IP 68 level protection
- Corrosion-resistant
- Resistant against chemicals
- May be used in tropics
- High mechanical endurance
- Does not cause stack effect
- High resistance to short-circuit
- Resistant to flame expansion
- May operate during fire
- Compatible with E-Line KX modules
Usage Areas
Galleries
between Transformer and Panel
Oil and Gas
Plants
Nuclear Plants
Cement Plants
Power Plants
Harbors and
Shipyards
Food Premises
Tunnels and
Underpasses
