E-Line KY-S Busway

Lighting Busway

25A IEC

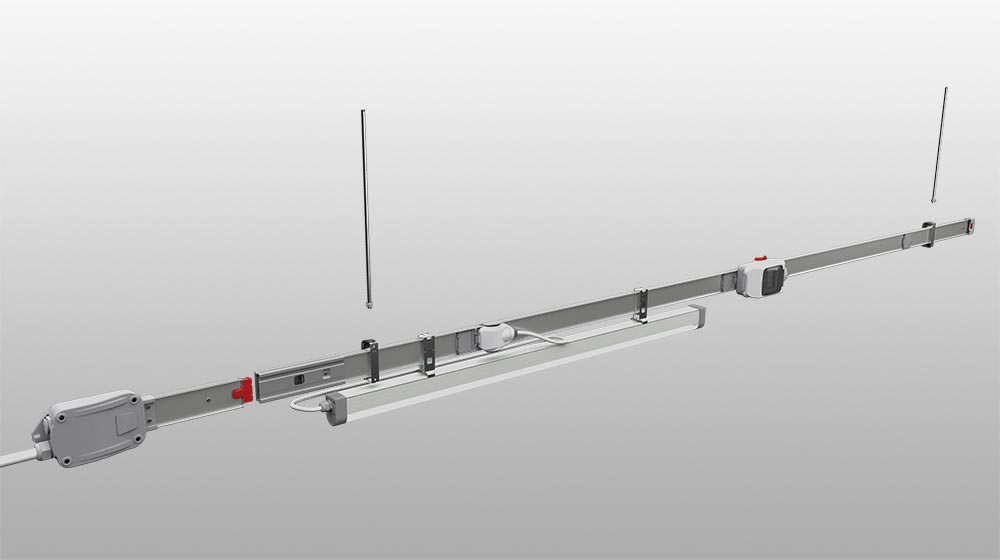

E-Line KY-S Lighting Busway Systems has been designed for buildings and industrial facilities which have lighting and outlet circuits with small electrical machinery and equipments that needs three phase and/or single phase energy needs with 25A.
KY-S Lighting Busway with its 10A – 16 A tap-off plugs and 32A tap-off boxes are being produced fully automated machines that uses most recent technology in accordance with ISO 9001 and with its quality assurance system certification. Products has been designed in accordance with IEC 61439-6 and tested. Busway housing is being produced as pre-galvanized sheet also if requested it could be produced as painted with RAL 7038 color.

GENERAL INFORMATION
DOCUMENTS
GALLERY
VIDEOS

Product Usage Specifications

E-Line KY-S

It is used for provide electrical energy to single circuit lighting circuits and emergency lighting circuits with machines that requires low-power at factories, offices and autoparks.
For a single housing, it has 2,3,4,5 and 6 conductors with the oppurtunity to use as single and three phase.

E-Line KY-S Lighting Busway DALI

It is used for provide electrical energy to single circuit DALI controlled automation circuits and lighting fixture.
For a single housing, it has 6 conductors with the oppurtunity to use as single and three phase.

Product Conductor Type and Current Ratings

E-Line KY-S

Copper Conductor
25A

E-Line KY-S-DALI

Copper Conductor
25A / 40A

Current Tap-off Units

From Plug-in window
With 32A plastic tap-off boxes
Can have output power With 10A/16A tap-off plugs

KY-S Lighting Busway Advantages and Features

Copper conductor with current rating as 25A
Inside of a busway housing, different number of conductor options up to 6 on a side.
If requested, RAL 7038 electrostatic oven dried busway housing on the galvanized sheet.
There are 3 output windows at one side on a standard 3 meter length busway as well as 4 output windows at one side on a 4 meter length busway and 1 output window at one side on a 1 meter length busway.
Slider type joint cap at joint points on the busway can ease montage process without a need of screw or any hand tool.
It is coated fully with non-flame propagating isolation material on tin-plated copper conductors.
Has a structure to minimize current resistance at joint points and blocks overheating at contact points with its silver plated spring contacts.

Tap-off plugs that has different colors depending on phases with special lock mechanism
Tap-off plugs and boxes are designed to prevent misuse and shock by electricity by different adressing structures.
Different colors has been used on tap-off plugs and boxes which located on cap, housing and cable entry point connectors to make it clear to see phase, function and features of it.
It is compatible to use in all inside building ceilings, wall and colon applications with flexible turn modüles and its attachments
It has clean earth CPE option.
IP55 protection class
