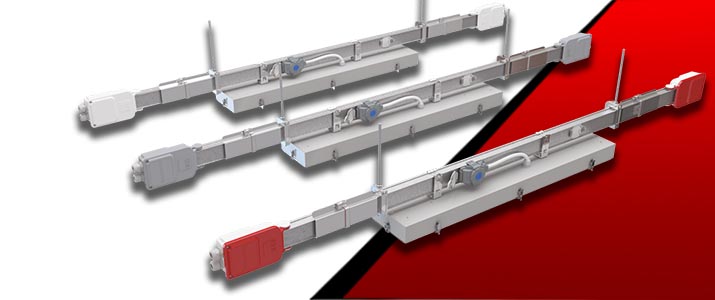

E-Line DL-SL Busway
25A to 32A IECLighting Distribution Busway
General Features
E-LINE DL
Dual-circuit busway systems are used in offices and workplaces on lighting and socket circuits and in high-ceiling industrial plants on lighting circuits. (2+2) … (5+5) different conductor combinations are available.
E-LINE SL
The E-Line SL Single-phase Busway system has been produced as a basic system and supersedes the E-Line KAM lighting busway range. It is used in factories, offices and car parks for feeding single-phase lighting. Three-phase or single-phase usage and 2, 3, 4, 5 conductor options in single phase are available.
E-LINE DL DALI
It is used in buildings and industrial plants on DALI controlled lighting circuits for both power supply and also a control line. In three-phase applications (4+4) or (5+4) CE (clean earth) conductor options or in single-phase applications (2+4) or (3+4) CE (clean earth) conductor options are available.
E-LINE SL-ACK
It is used in factories, offices and car parks for feeding lighting where there are also emergency lighting kit fixtures. Three-phase or single-phase usage and 3 or 5 conductor options in single phase are available.
E-LINE DL DIM
It is used in buildings and industrial plants, on lighting circuits and for sectional dimming of fixtures used with ballast with corridor function as well as for supplying power Three-phase application is available. 5+4 conductor option.
E-LINE SL-DALI+ACK
It is used in factories, offices and car parks for feeding single-phase DALI-controlled lighting. Single-phase usage and 5 conductor option in single phase are available.
Conductor Material and Rated Currents
25A / 32A
Advantages of DL/SL Busway
- 25A, 32A Current rated copper conductor
- Different conductor configurations up to (5+5) double-side 10 conductors in a single body
- Upon request, RAL 7038 electrostatic oven-dried painted on galvanized sheet steel body structure
- Double-sided 8 outlet windows (4+4) on 1 length Busway of standard 3 metres length
- Flame resistant halogen-free full length insulation on tin plated copper conductors
- Easy-to-mount attachment structure with silver-plated spring contacts
- Outlet plugs with lock-mechanism in different colours to indicate phases
- Clean Earth CE option (Clean Earth)
- IP55 protection class
E-Line DL
- 25A, 32A Current rated copper conductor
- Different conductor number up to one-side 5 conductors in a single body
- Upon request, RAL 7038 electrostatic oven-dried painted on galvanized sheet steel body structure
- Single-side 4 outlet windows on 1 length Busway of standard 3 metres length
- Flame resistant halogen-free full length insulation on tin plated copper conductors
- Easy-to-mount joint structure with silver-plated spring contacts
- Outlet plugs with lock-mechanism in different colours to indicate phases
- Clean Earth CE option (Clean Earth)
- IP55 protection class
E-Line SL
Usage Areas
Small
enterprises
Local production areas in factories
Workshops
Textile
facilities
Automotive facilities
- Automotive
sub-industries
Small
industrial facilities
Malls
Data
Centres
Large
Markets
