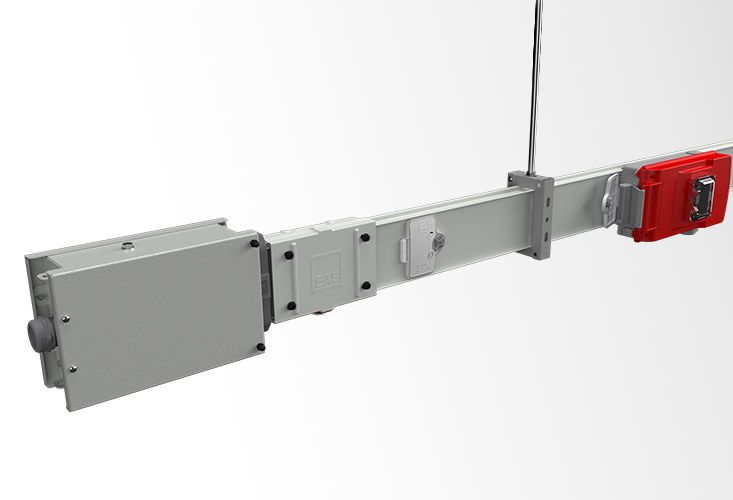

E-Line MK Busway

100A to 225A IEC

Busway System - Flexibility

The small power range busway systems of E-Line MK series provide flexible and cost-effective solutions for the transmission and distribution of electricity in small-sized enterprises , workshops and industrial facilities.
The MK Busway range offers cost effective solutions to the requirement for different amounts of energy through the range of plastic tap-off boxes. They are designed to provide energy up to 225A.

GENERAL INFORMATION
DOCUMENTS
BIM
GALLERY
VIDEOS

Sheet metal (RAL 7038 epoxy polyester electrostatic powder coated)

Full-length tin-plated Aluminium or copper conductor

Plastic protection at certain distances between air segregated conductors

Conductor Configuration

4 Conductor (L1/L2/L3/N/ PE Housing)

5 Conductor (L1/L2/L3/N/PE/ PE Housing)

5 Conductor (L1/L2/L3/N/CPE/ PE Housing) – Clean Earth

Conductor Material and Rated Currents

Aluminium Conductor:

100A / 160A / 225A

Copper Conductor:

160A / 225A

Advantages of MK Busway

IP55 protection class
Aluminum or copper conductor options
Conductors are fully tin plated
4, 4.5 or 5 conductors
Plug-in tap off outlets at every 60 cm on both sides as standard
Clean Earth option
RAL 7038 painted steel enclosure
E-Line Optional conductor can be configured in the E-Line MK Busway system.

Vertical, horizontal elbow and expansion modules are offered in a single module. Horizontal or vertical elbows at the desired angles can be carried out easily. In addition, it can be used safely in building dilatations thanks to its flexibility in every direction.
The possibility of current supply from a total of 10 points on both sides of the busway system is offered as a standard.
Safety is ensured so not to allow finger contact when the busway IP covers are open or the tap off boxes are in the off position and the covers are open (IP class of the system is 2X).

Tap Off Boxes

With 16/40/63/80A Plastic Tap off Boxes

Three phase tap-off boxes with DIN mounted fuse holders (10x38 mm) up to 16A, 40A or 80A (empty or fuse included)
Three phase output boxes with 63A D02 plug fuse (empty or fuse included)
Tap off boxes with MCB (miniature circuit breaker) rated up to 16A (empty or including the circuit breaker)
80A special Design Data Centre Tap-off boxes
The body of the busway tap off boxes is made of flame-proof and halogen-free plastic materials.

It is possible to receive current up to 80A with tap off boxes.
16-80A busway tap off boxes have an interlocking mechanism that prevents the cover from being opened without cutting the power off. The busway tap off box is easily and safely mounted without requiring any further components.
Opportunity to receive energy with 80A Aluminium Tap off Boxes
