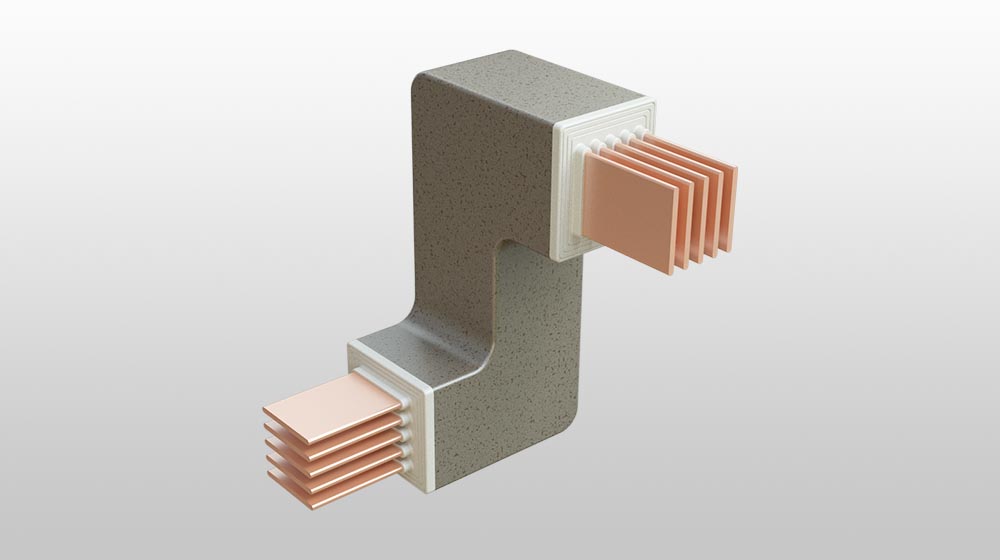

E-Line CR Busway
160A to 800A IECCast Resin Busway
The Cast Resin Busway is made from a special "Durocomp" composite material, made from selected silicon
mineral, and epoxy resin. The CR Busway is also IP 69 protected, and has extreme heat resistance and
mechanical strength, compared to other busway in the industry. The Cast Resin Busway provides stable
electrical distribution between 630A and 6300A. Ex-proof protected and compatible with E-line KX busway
modules.
General Features
Tin-plated aluminium alloy
frame suspension and
earting on composite material formed by pure
silicon minerals and epoxy resin.
Full-length tin-plated
aluminium or copper
conductor
Conductor Configuration
Aluminium or Copper Conductor:
Conductor Material and Rated Currents
Aluminium Conductor:
Copper Conductor:
Advantages of E-Line CR
The cast resin body gives a very effective heat dissipation characteristic.- IP68 and IP69k protection class
- 3, 4, 4.5, 5 and 6 conductor options
- Clean earth option
- IEC 60331- 1 3 hours of continuous current under fire condition
- Conformance to seismic requirements in accordance with IEC 60068-3-3 ; IEC 60068-2-57 and IEEE 693 standards
- 3 hours of fire barrier resistance in accordance with ISO 834
- E60 and E120 current continuance under fire condition in accordance with DIN 4102-12
- ATEX protection class
- Exterior environment IP 68 protection class
- Corrosion-resistant
- Chemical-resistant
- Pest-resistant
- Usable in tropical environments
- Has high mechanical strength
- Without stack effect
- Highly resistant to short circuit
- Fire-resistant
- Current continuity under fire conditions
- Compatible with E-Line KX modules
Applications E-Line CR
-
Galleries between Transformer and Panel
-
Oil and
Gas Plants
Nuclear Plants
-
Cement
Plants
-
Power
Plants
-
Harbors
and Shipyards
-
Food
Premises
-
Tunnels
and Underpasses
